I.V. Catheter

Peripheral IV catheter with PU catheter, side-hole flashback and high pressure resistance.

MOQ10,000 pcs

Lead time30–35 days

HS code901839

SterilityEO, single use

Request a quote for this product

Custom gauges, hub colours, labelling and packaging are available. Minimum quantities apply for private label runs.

Description

The universal bevel allows a wider choice of insertion angles, and the side hole produces a fast, clearly visible flashback. The PU biomaterial catheter softens at body temperature for a longer indwelling period, while the injection port withstands high pressure. Sizes run from 26G to 18G with colour-coded hubs.

Specifications

Gauge	OD (mm)	Colour	Catheter length (mm)	Flow rate (ml/min)
26G	0.60	Purple	15	12
24G	0.70	Yellow	19	22
22G	0.90	Dark blue	25	36
20G	1.00	Pink	32	52
18G	1.20	Dark green	32	80
Catheter	PU, radiopaque	Tip	Universal bevel, side hole
Priming volume	Low	Sterility	EO

Standard specifications are listed above. Custom specifications can be manufactured on request.

Applications

Peripheral venous access, fluid and drug administration, blood sampling during insertion.

Enquire about this product

Send your target quantity and market — we reply within one business day.

Same family

Related products

View category

I.V. Catheters

Safety I.V. Catheter

Safety IV catheter with passive needlestick protection and an optional needle-free positive-…

NM-IV-3002 Details

I.V. Catheters

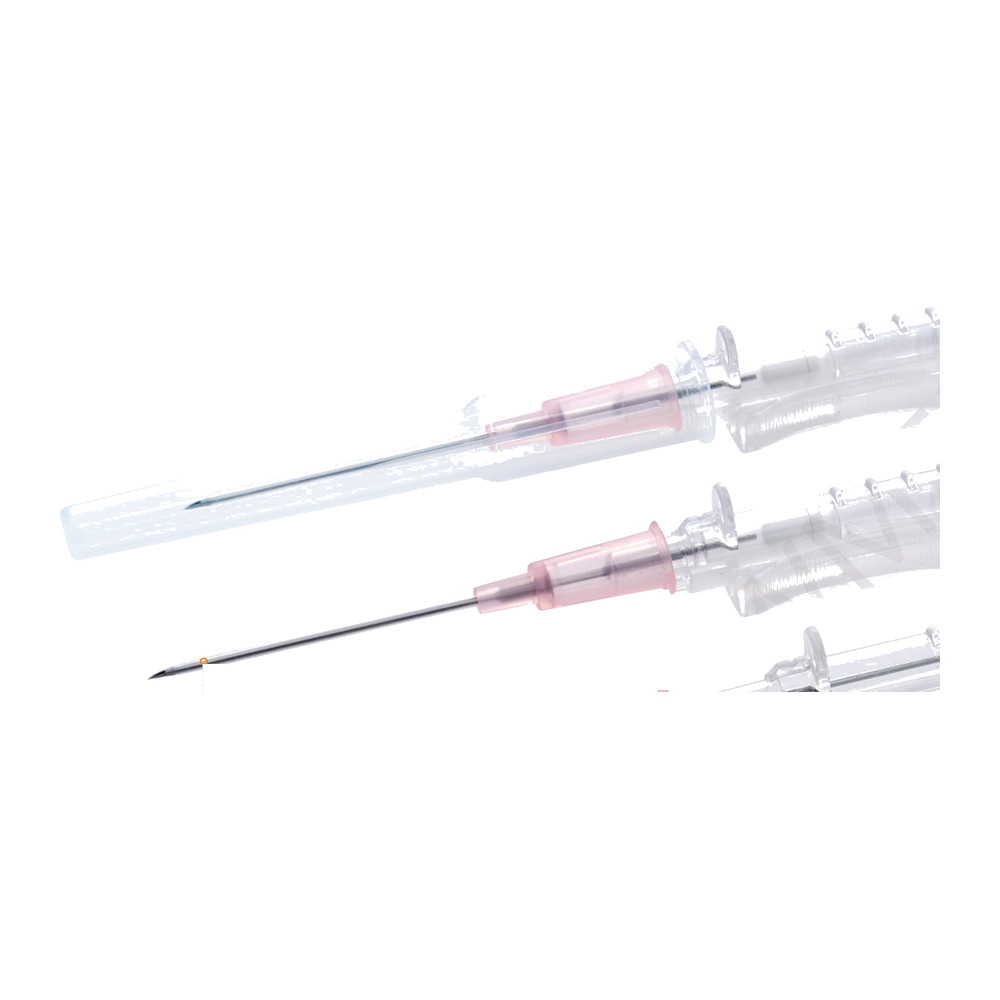

Safety I.V. Catheter with Blood Control

Safety IV catheter with a notched needle for first-stick success and a push-button shielding…

NM-IV-3003 Details

I.V. Catheters

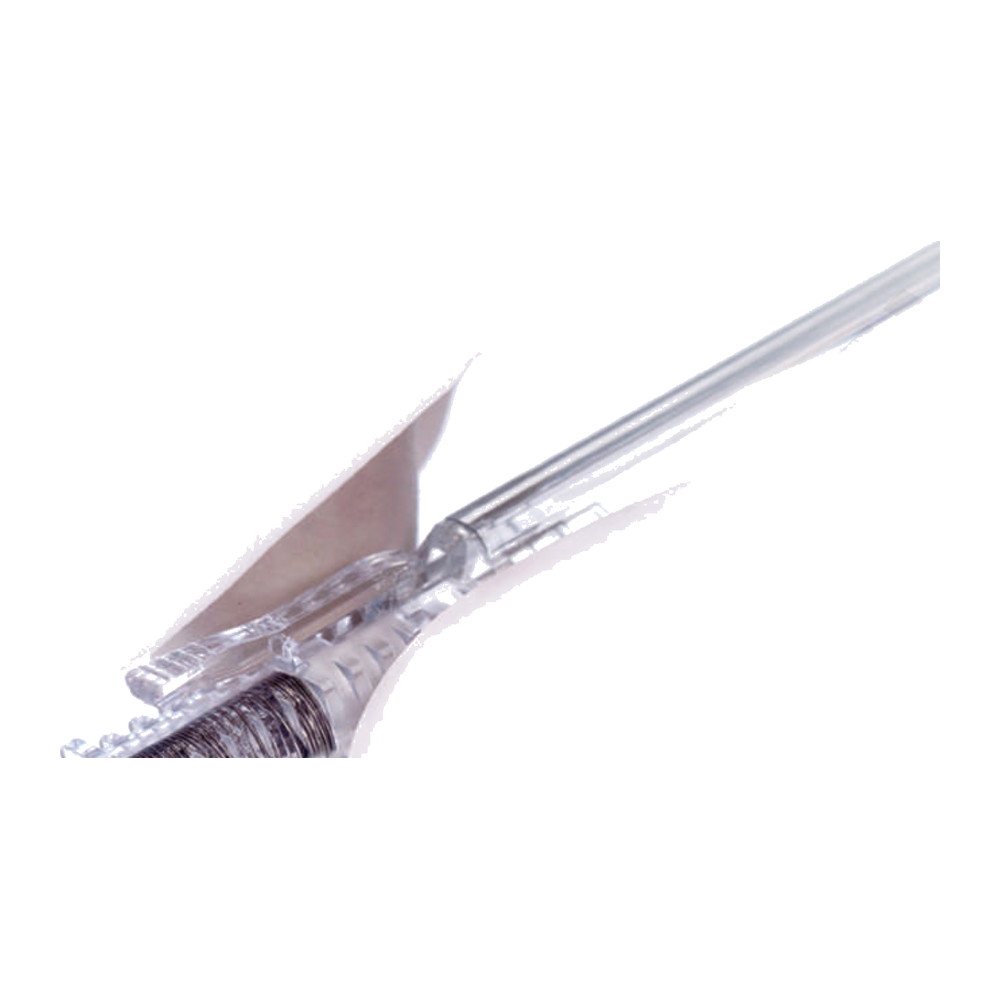

Autoguard Safety IV Catheter
